Product information

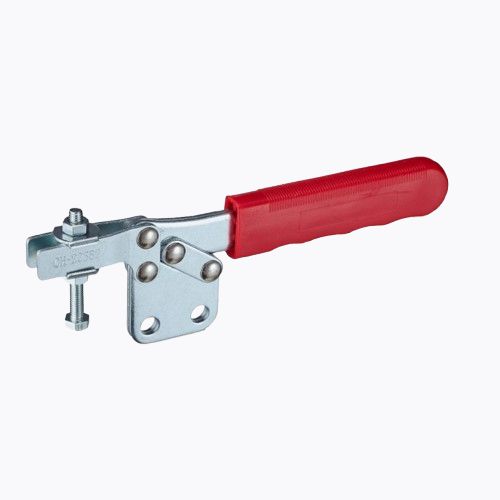

The CH-22382, from the Taiwanese brand Clamptek, is a quick-release clamp with horizontal jaws parallel to the clamping direction. The clamping force is transferred via the action of the quick-release handle. This clamp is used in jig and fixture systems and in manufacturing workshops.
CH toggle clamp specifications:
– Model: CH22382
– Product Information:

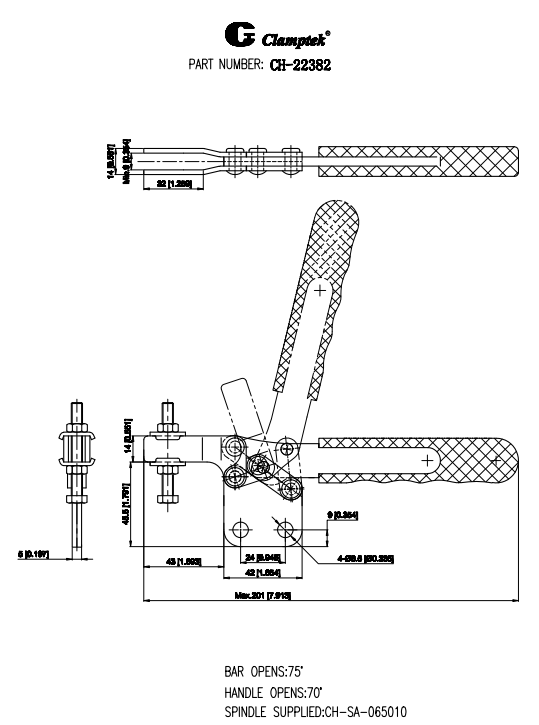

+ PDF drawing download here
+ CAD dwg
+ File step 3D
Applications of CH locating clamps in industrial manufacturing:
– Used in assembly on trucks, motorcycle and bicycle workshops, and in the production of electronic components.
– Used in workshops for clamping and assembling molds.
– Used in workshops for manufacturing wood clamps and changing the clamping direction of products.
