Product information

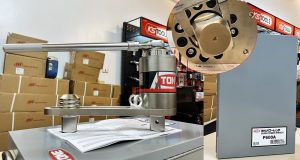

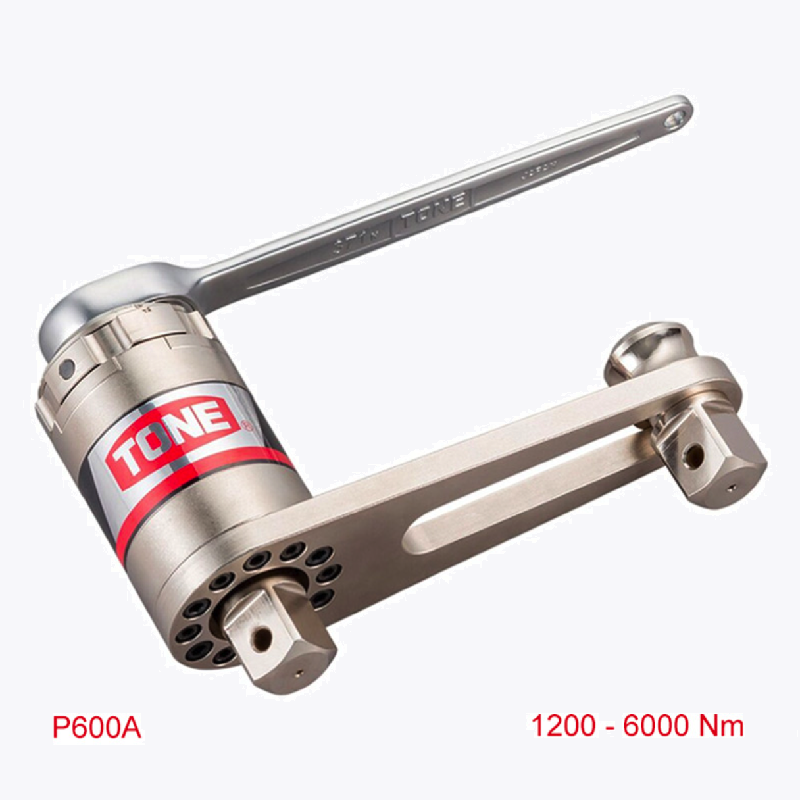

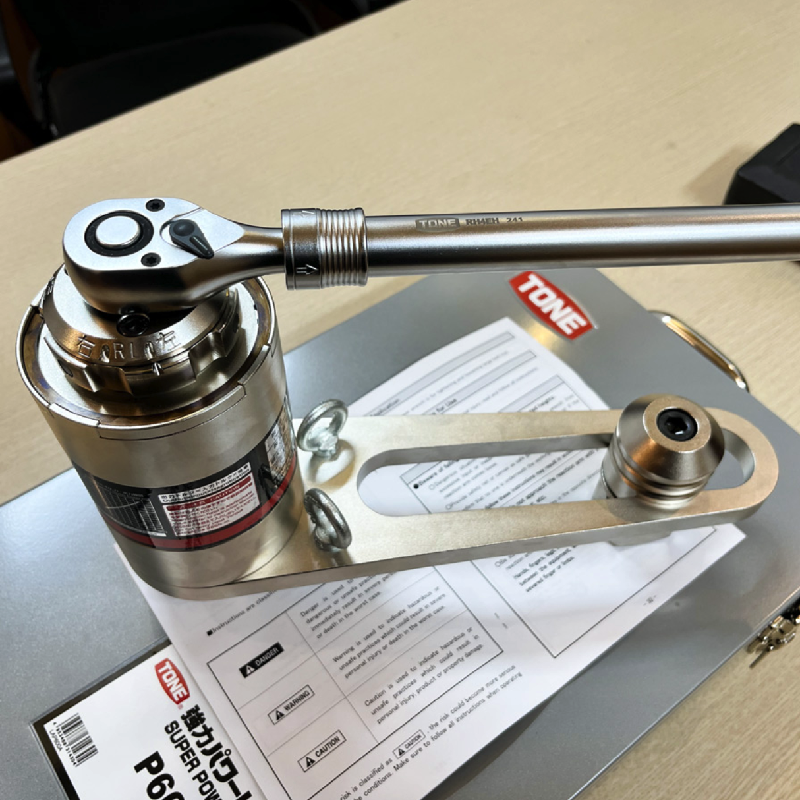

The TONE P600A Super Power Wrench is a high-torque mechanical multiplier designed for heavy-duty bolting, featuring a 23.5x magnification factor to deliver up to 6,000 Nm of torque. It is used for tightening and loosening large bolts, such as in construction machinery, large vehicle wheels, and ship engines, without requiring a power supply.
Key Features and Specifications:
Torque Output: 1,200 – 6,000 N·m.
Input Torque: 51 – 255 N·m.
Magnification/Gear Ratio: 23.5 (Output/Input ratio).
Accuracy: ±5% in repeated tightening.
Input Drive: 1/2 inch (12.7 mm).
Output Drive: 1-1/2 inch (38.1 mm).
Weight: 11.7 kg (main body).
Design: Compact and lightweight for confined spaces, featuring a sliding reaction force receiver.
Set Variations (P600A vs. P600AT):
P600A: Refers to the power wrench unit alone, which includes the main body and a metal case.
P600AT: Refers to the full set, which includes the P600A power wrench and a TONE T4MN300 torque wrench for controlling the input torque.
Operating Mechanism
The tool uses a planetary gear mechanism to multiply input force, making it possible to achieve high torque by hand. It offers bidirectional rotation (tightening and loosening) and a clutch function for secure operation.
